 Knowledge Base AutoFTP Service > Contents > Auto FTP Interface
AutoFTP Service

AutoFTP interface

  • Main Screen
  • Transfer Manager window
  • FTP Connection dialog box
  • Transfer Scheduler window
  • Schedule Item dialog box
  • Transfer Item dialog box
  • Log window
  •

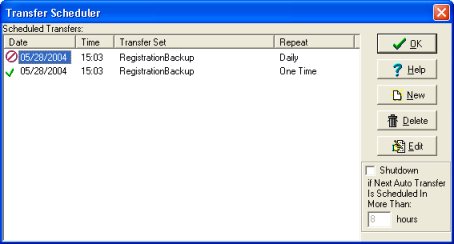

    Transfer Scheduler window

    The Transfer Scheduler window will help you schedule auto-transfers of previously saved transfer sets and check the status of previously scheduled auto transfers.



    ftp transfer scheduler



    To schedule new auto transfer

    To define a new auto-transfer item then press on the New push button. It will display the Schedule Item dialog box. Define date, and time of the transfer, select the transfer set and press OK push button. The new scheduled auto-transfer item will be listed in the Transfer Scheduler window. In order to delete a scheduled item just select this item and press Delete button. If you want to change some values (time or date) of the scheduled item just select this item and press Edit button.



    Check the status of scheduled auto transfers

    The following icons can be listed in front of each scheduled transfer in the Scheduled Transfers list box:

    - icon indicates that the item is active. The transfer will be activated at scheduled date and time.

    - icon indicates that the item is not active. Right mouse click on the Transfer Set displays the popup menu with Pause/Resume option.

    - icon indicates that the auto-transfer was successful.

    - icon indicates that the auto-transfer failed. Scheduled transfer was aborted due to transfer errors (wrong file name, file folder, or very slow connection)



    Related topics:

  • Creating transfer sets, transfer queue
  • Scheduling auto-transfers
  •
